Ford is moving closer to the launch of its 2027 Fathom pickup truck, with 5,000 unicastings already produced as part of the vehicle’s pre-launch development. The components are being used for prototype assembly and manufacturing process testing rather than final production models as the automaker works to refine its new manufacturing approach.
The process, known as unicasting, is expected to play a major role in Ford’s next-generation vehicles. The Fathom is among the first planned models to adopt the technology, followed by the F-150.
Ford Prepares Unicasting for Next-Generation Vehicles
Ford’s Shelbyville Technical Center is home to the unicasting process. The components produced there are being shipped to the Louisville Assembly Plant ahead of the 2027 Fathom’s launch for process testing and prototype assembly.
Although Ford has already manufactured 5,000 unicastings, none of these components is intended for final production vehicles. Instead, they are supporting development and testing as the Fathom approaches the final stages of pre-launch preparation.

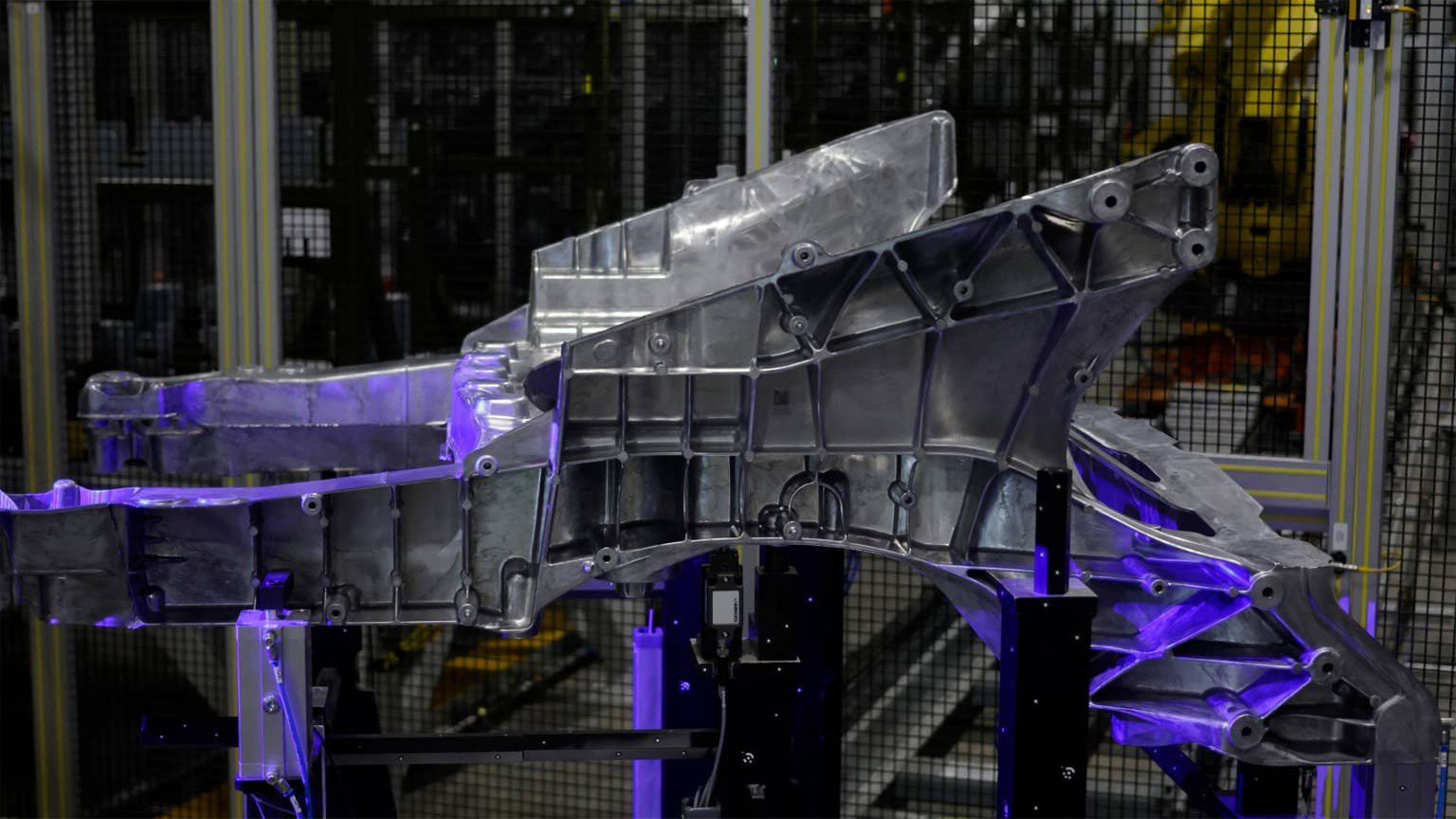

The manufacturing method is central to Ford’s plans to simplify vehicle construction. The Fathom pickup’s architecture uses two large structural components designed to reduce vehicle mass and improve overall energy efficiency.
The approach reduces the chassis structure from 146 individual parts to just two. This substantial reduction in component count simplifies vehicle production and forms part of Ford’s new Universal Production System.
How Ford’s Universal Production System Works
Ford’s engineering team has designed the unicast components with modular repairability in mind. The approach is intended to simplify manufacturing and change how vehicle assembly is organized.
The Universal Production System divides the traditional assembly line into three main branches. This allows different sections of a vehicle to be built simultaneously before they are assembled into a complete vehicle.
By reorganizing how vehicle sections are manufactured and assembled, Ford is incorporating unicasting into its broader production strategy for next-generation models.
Inside Ford’s Unicasting Process
The process begins by heating aluminum in a furnace. The molten metal is then injected into a mold designed to form either the front or rear structure of the vehicle.
Once the aluminum solidifies, a robot quenches the casting to cool and harden it. The component then undergoes a series of inspections and tests designed to identify defects.
Visual inspections help identify obvious cracks, while X-rays detect pores and voids. Optical scanners examine the surface for additional imperfections that might not be visible to the human eye.
The inspection process also includes tensile testing and other alloy tests. These checks are part of the quality-control process for the components.
Ford’s 5,000 Unicastings Remain Dedicated to Prototypes
Ford has produced 5,000 unicastings, but none is destined for final production vehicles. All the components are being used to assemble Fathom prototypes and test the manufacturing process ahead of the pickup’s planned 2027 launch.
The work represents part of Ford’s final pre-launch testing as the automaker prepares to introduce unicasting with the Fathom and expand the manufacturing method to other next-generation vehicles.
